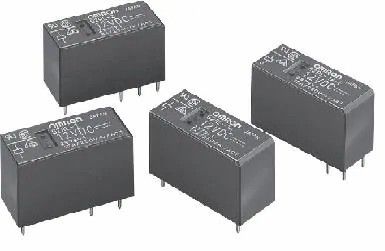

The G2RL-1A-E-CFDC5 is a general purpose electromechanical relay with a non-latching coil type and a maximum operating temperature of 85°C. It has a maximum voltage rating of 300V DC and 440V AC, and a maximum current rating of 16A. The relay is available in a through hole package and is RoHS compliant. It has a contact material of silver and cadmium, and a coil resistance of 62.5R with a voltage of 5V DC. The relay has an operate time of 15ms and a release time of 5ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G2RL-1A-E-CFDC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 80mA |
| Coil Resistance | 62.5R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Cadmium |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G2RL |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
