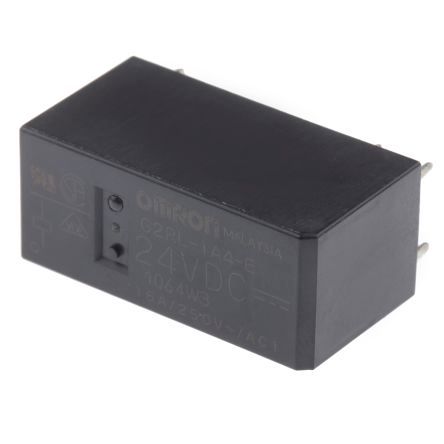

SPST-NO through-hole power relay featuring a 24VDC coil with 16.7mA current draw and 1.44kΩ resistance. This general-purpose relay offers a 16A contact current rating with a maximum AC voltage rating of 440V and DC voltage rating of 300V. Operating within a -40°C to 85°C temperature range, it provides a 15ms operate time and 5ms release time. Constructed with tin, silver, and cadmium contact material, this RoHS compliant component is designed for reliable switching applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G2RL-1A4-EDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G2RL-1A4-EDC24 technical specifications.
| Coil Current | 16.7mA |
| Coil Resistance | 1.44kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Contact Material | Tin, Silver, Cadmium |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G2RL |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 12.7mm |
| RoHS | Compliant |
