DPDT power PCB relay with an 8A contact current rating and 440V AC / 300V DC voltage rating. Features a 12V DC non-latching coil with 33.3mA current and 360 Ohm resistance. Through-hole mounting with PC pin termination, sealed DIP package. Operating temperature range of -40°C to 85°C. Approvals include UL, CSA, and VDE.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron G2RL-24-CF-DC12 technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
DIP
Coil Current
33.3mA
Coil Resistance
360R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
8A
Contact Material
Silver, Cadmium
Depth
12.7mm
Height
15.7mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
8A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
300V
Mount
Through Hole, PCB
Operate Time
15ms
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
Series
G2RL
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
440V
Weight
12g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Omron G2RL-24-CF-DC12 Datasheet
Download the complete datasheet for Omron G2RL-24-CF-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

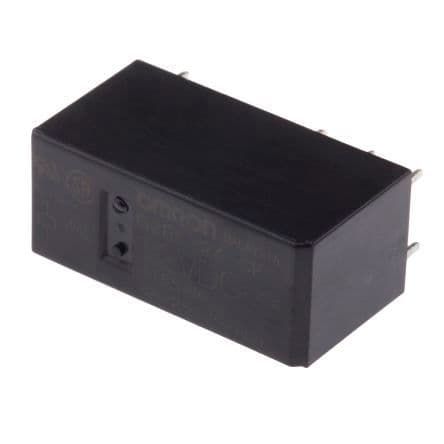

Product Images
