DPDT general purpose power relay with an 8A contact current rating and 440VAC/300VDC voltage rating. Features a 5VDC coil voltage, 400mW coil power, and 80mA coil current. Through-hole PCB mountable with PC pin termination. Operating temperature range from -40°C to 85°C. Approvals include UL, CSA, and VDE.
PackageDIP
Current Rating8A
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
Omron G2RL-24-DC5 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | DIP |
| Coil Current | 80mA |
| Coil Power | 400mW |
| Coil Resistance | 62.5R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Cadmium |
| Current Rating | 8A |
| Depth | 12.7mm |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole, PCB |
| Operate Time | 15ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G2RL |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 440V |
| DC Rated Voltage | 300V |
| Weight | 12g |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RL-24-DC5 Datasheet
Download the complete datasheet for Omron G2RL-24-DC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

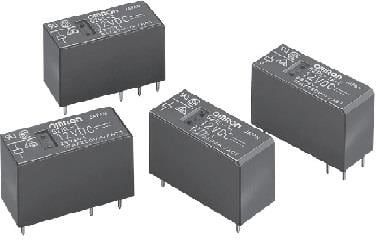

Product Images
