Omron
G2RL1A24DC
OMRON ELECTRONIC COMPONENTS G2RL-1A 24DC General Purpose Relay, G2RL Series, Power, Non Latching, SPST-NO, 24 VDC, 12 A
MountingPCB
Quick Jump:
Technical Specifications
Omron G2RL1A24DC technical specifications.
General
Application(s)
POWER
Coil Power
400mW
Coil Resistance
1.44kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
12A
Contact Material
Tin, Silver
Depth
12.7mm
Height
15.7mm
Length
29mm
Life (Hours)
20000000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Ratings
IP40
Reach SVHC Compliant
Unknown
Switching Current
12A
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Omron G2RL1A24DC Datasheet
Download the complete datasheet for Omron G2RL1A24DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

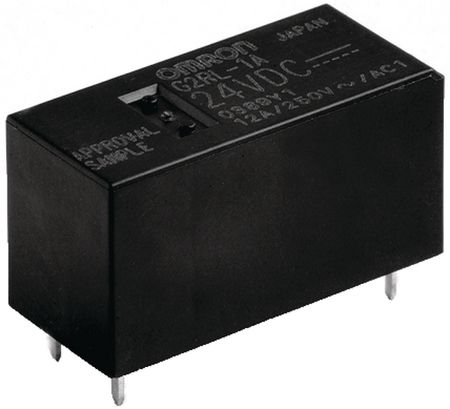

Product Images
