SPST-NO power relay featuring a 5VDC coil with 80mA coil current and 62.5 Ohm coil resistance, consuming 400mW. Contact ratings include 16A maximum current and AC/DC voltage ratings of 440V and 300V respectively. This through-hole mount component offers 15ms operate time and 5ms release time, with a tin, silver, cadmium contact material. Operating temperature range spans -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Omron G2RL1A4EDC5 technical specifications.
General
Package/Case
DIP
Coil Current
80mA
Coil Power
400mW
Coil Resistance
62.5R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
16A
Contact Material
Tin, Silver, Cadmium
Height
15.7mm
Length
29mm
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
300V
Mount
Through Hole
Operate Time
15ms
Package Quantity
20
Packaging
Rail/Tube
Power Consumption
400mW
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
Series
G2RL
Termination
PC Pin
Throw Configuration
SPST
Weight
12g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Omron G2RL1A4EDC5 Datasheet
Download the complete datasheet for Omron G2RL1A4EDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

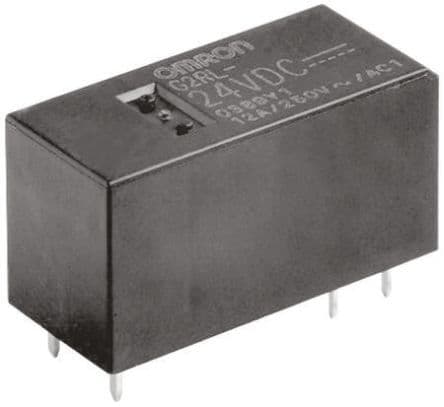

Product Images
