SPDT power relay with a 6A contact current rating and tin/silver contact material. Features a 110VAC coil voltage, 7.1mA coil current, and non-latching coil type. Operates within a -40°C to 55°C temperature range and offers 20ms operate time and 40ms release time. Mounts via DIN rail or socket with screw termination. Approvals include VDE, CE, and cULus, with RoHS compliance.
Current Rating6A
MountingDIN Rail, Socket
Quick Jump:
Technical Specifications
Omron G2RV-SL700-AC110 technical specifications.
General
| Approvals | VDE, CE, cULus |
| Coil Current | 7.1mA |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 110V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Current Rating | 6A |
| Depth | 6.2mm |
| Lead Free | Lead Free |
| Length | 92.7mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 125V |
| Mount | DIN Rail, Socket |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 40ms |
| RoHS Compliant | Yes |
| Series | G2RV |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 440V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RV-SL700-AC110 Datasheet
Download the complete datasheet for Omron G2RV-SL700-AC110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

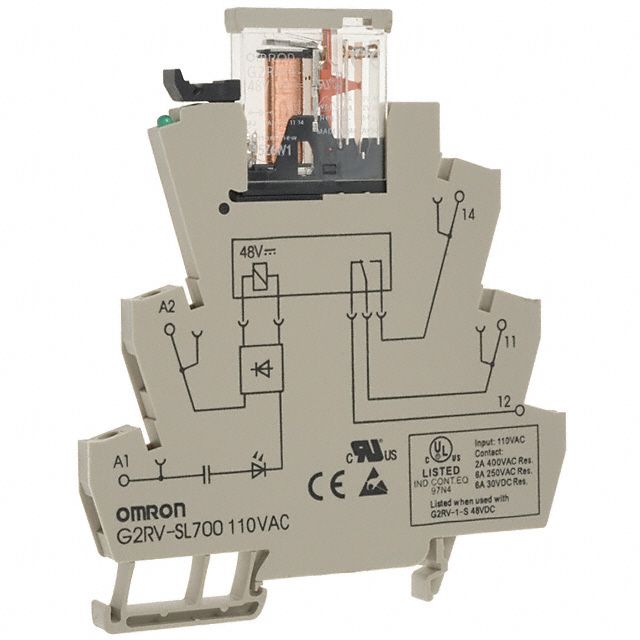

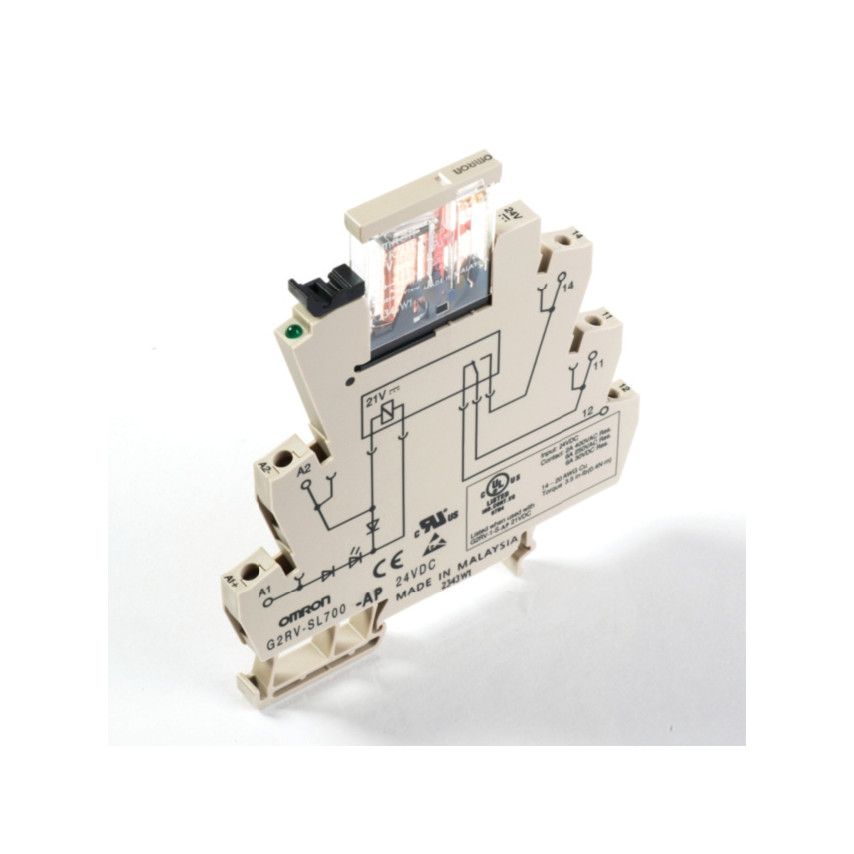

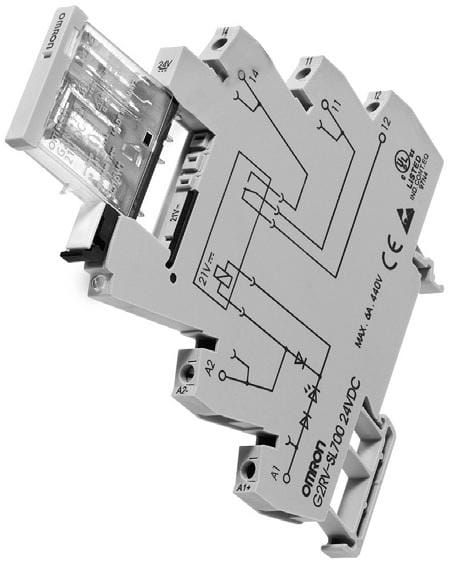

Product Images
