SPDT General Purpose Power Relay with a 6A contact current rating and 440VAC/125VDC maximum voltage rating. Features a 230VAC coil voltage, 7.3mA coil current, and 1.7W power consumption. Operates within a -40°C to 55°C temperature range with 20ms operate and 40ms release times. Module package with screw termination, designed for DIN rail or socket mounting.
PackageModule
MountingDIN Rail, Socket
Power1.7W
Quick Jump:
Technical Specifications
Omron G2RV-SL700AC230 technical specifications.
General
| Package/Case | Module |
| Coil Current | 7.3mA |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Depth | 6.2mm |
| Lead Free | Lead Free |
| Length | 92.7mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 125V |
| Mount | DIN Rail, Socket |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.7W |
| Relay Type | General Purpose |
| Release Time | 40ms |
| Series | G2RV |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 440V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RV-SL700AC230 Datasheet
Download the complete datasheet for Omron G2RV-SL700AC230 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

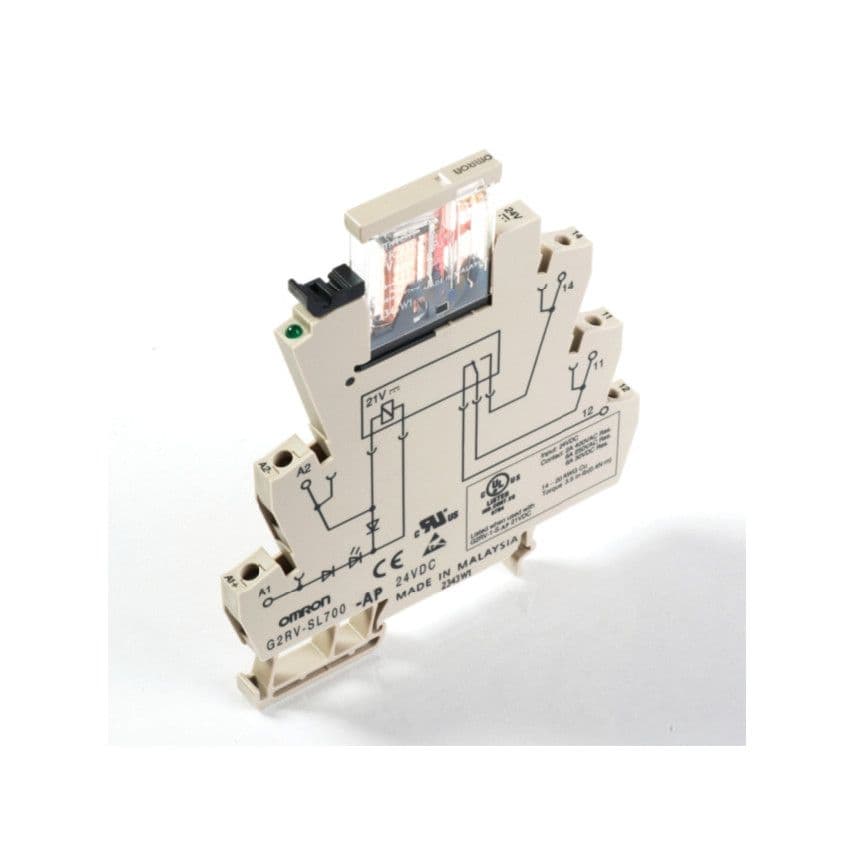

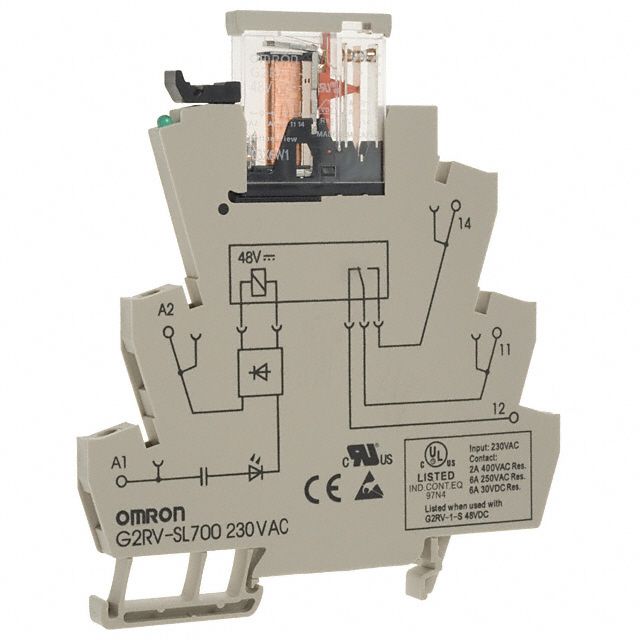

Product Images
