General purpose SPDT power relay with a 6A contact current rating and 440V AC / 125V DC maximum voltage rating. Features a 24V AC/DC coil with 13mA coil current and 300mW coil power. Operates within a -40°C to 55°C temperature range with 20ms operate and 40ms release times. Mounts via DIN rail or socket with screw termination. Approvals include VDE, CE, and cULus.
Current Rating6A
MountingDIN Rail, Socket
Power300mW
Quick Jump:
Technical Specifications
Omron G2RVSL700ACDC24 technical specifications.
General
| Approvals | VDE, CE, cULus |
| Coil Current | 13mA |
| Coil Power | 300mW |
| Coil Resistance | 1.84kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Current Rating | 6A |
| Depth | 6.2mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 125V |
| Mount | DIN Rail, Socket |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 300mW |
| Relay Type | General Purpose |
| Release Time | 40ms |
| Series | G2RV |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 440V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RVSL700ACDC24 Datasheet
Download the complete datasheet for Omron G2RVSL700ACDC24 to view detailed technical specifications.
No datasheet is available for this part.

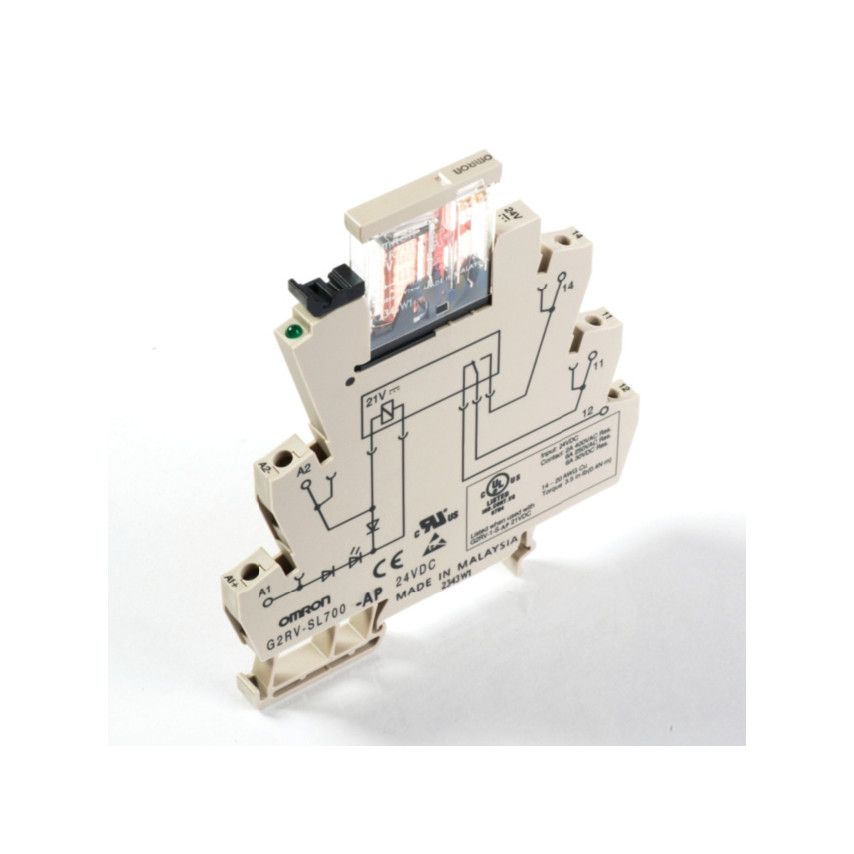

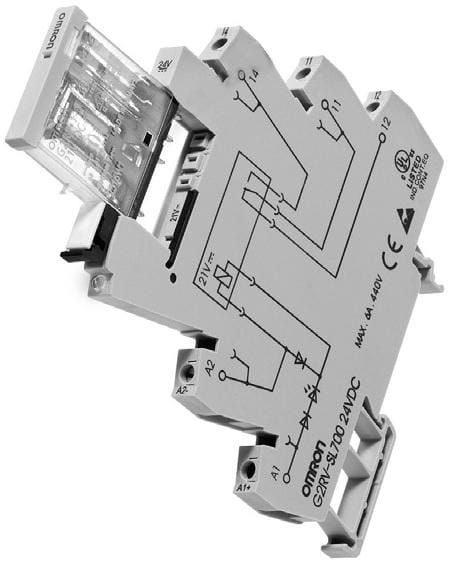

Product Images
