Solid State Relay (SSR) with SPST-NO configuration, rated for 10A load current and 19-264V AC output voltage. Features a DC input type requiring 7mA input current and a maximum input voltage of 32V. Offers 2.5kV isolation voltage and operates across a temperature range of -30°C to 80°C. Panel or chassis mountable with screw termination, this lead-free component is UL, CSA, VDE, and CE approved.
Current Rating10A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron G3NA-210B-DC5-24 technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Current Rating | 10A |
| Height | 27mm |
| Input Current | 7mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 58mm |
| Load Current | 10A |
| Max Input Current | 7mA |
| Max Input Voltage | 32V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 264V |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 19V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 10A |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | Relay |
| Series | G3NA |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 240V |
| Width | 43mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3NA-210B-DC5-24 Datasheet
Download the complete datasheet for Omron G3NA-210B-DC5-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

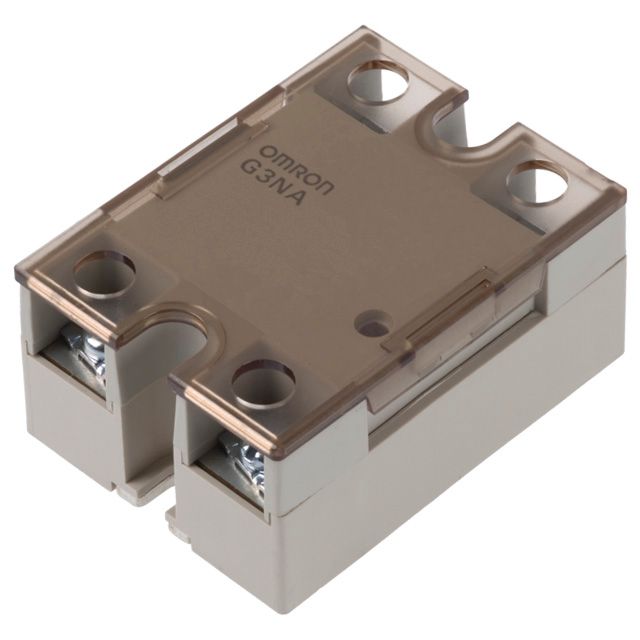

Product Images
