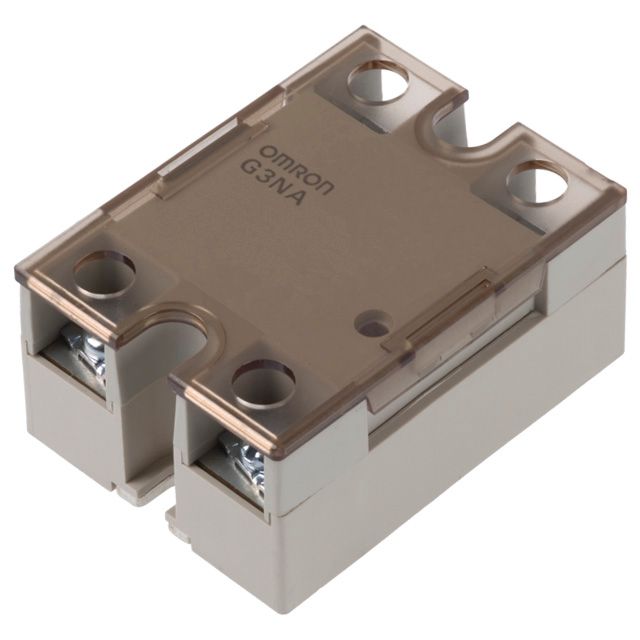

AC & DC Output Solid State Relay (SSR) with SPST-NO configuration, rated for 20A load current and 19-264V AC output voltage. Features a DC input with 7mA input current and a maximum input voltage of 32V. Offers 2.5kV isolation voltage and operates within a -30°C to 80°C temperature range. Chassis mountable via screw termination, this lead-free component is UL, CSA, VDE, and CE approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3NA-220B-DC5-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3NA-220B-DC5-24 technical specifications.
| Approvals | UL, CSA, VDE, CE |
| Current Rating | 20A |
| Height | 27mm |
| Input Current | 7mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 55mm |
| Load Current | 20A |
| Max Input Current | 7mA |
| Max Input Voltage | 32V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 20A |
| Max Output Voltage | 264V |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 19V |
| Mount | Chassis Mount, Screw |
| Output Current | 20A |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | G3NA |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 240V |
| Width | 43mm |
| RoHS | Compliant |
