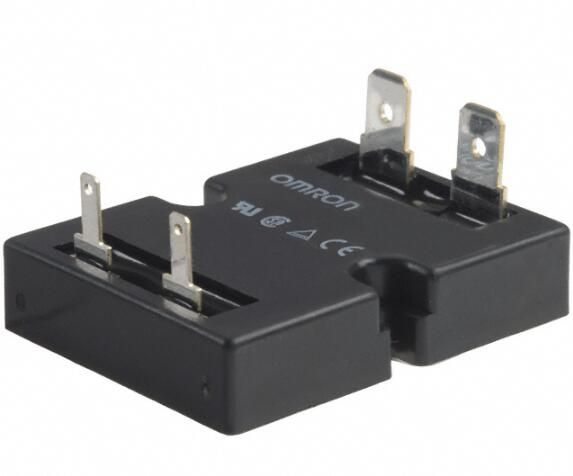

Solid State Relay (SSR) with SPST-NO configuration, featuring a 20A load current rating and 75-264V AC output voltage range. This chassis-mount relay accepts a 10mA DC input and provides 2kV isolation. Approvals include UL, CSA, CE, and TUV, with RoHS compliance. Operating temperature range is -30°C to 80°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3NE-220T-USDC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3NE-220T-USDC12 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Current Rating | 20A |
| Depth | 37.5mm |
| Height | 11.5mm |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 2kV |
| Length | 47.5mm |
| Load Current | 20A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 20A |
| Max Output Voltage | 264V |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 75V |
| Mount | Chassis Mount, Panel, Screw |
| Output Current | 20A |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3NE |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 240V |
| Width | 37.5mm |
| RoHS | Compliant |
