Solid State Relay (SSR) for AC & DC Output applications, featuring a 20A AC output current rating and 400VAC maximum output voltage. This DIN rail mountable relay operates with a 7mA DC input current and offers 4kV isolation voltage. It is designed for a DC control voltage range of 9.6V to 30V and supports chassis, panel, and screw mounting. Approvals include UL, CSA, and VDE, with RoHS compliance.
Package200
Current Rating20A
MountingDIN Rail, Chassis, Panel, Screw
Quick Jump:
Technical Specifications
Omron G3PA-420B-VDDC12-24 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | 200 |
| Current Rating | 20A |
| Depth | 37mm |
| Height | 100mm |
| Input Current | 7mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Length | 100mm |
| Load Current | 20A |
| Max Input Current | 7mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 20A |
| Max Output Voltage | 440V |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 9.6V |
| Max Voltage Rating (DC) | 30V |
| Mount | DIN Rail, Chassis, Panel, Screw |
| Operating Supply Voltage | 30V |
| Output Current | 20A |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3PA |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 400V |
| Width | 37.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3PA-420B-VDDC12-24 Datasheet
Download the complete datasheet for Omron G3PA-420B-VDDC12-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

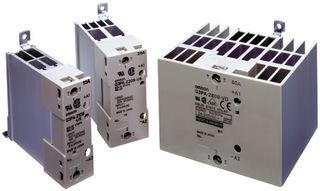

Product Images
