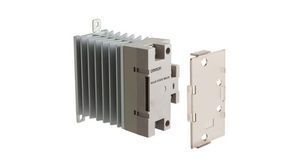

Solid State Relay (SSR) with DC input and AC output, featuring a 45A load current rating and a maximum output voltage of 264V. Designed for 12-24VDC input control, it offers a 7mA input current and 2.5kV isolation voltage. This module-type SSR supports DIN rail and screw mounting, with screw termination, and operates within a temperature range of -30°C to 80°C. It boasts a 1ms turn-on and turn-off delay time.
PackageModule
Current Rating45A
MountingDIN Rail, Screw
Quick Jump:
Technical Specifications
Omron G3PE-245BDC12-24 technical specifications.
General
Package/Case
Module
Current Rating
45A
Depth
130mm
Height
100mm
Input Current
7mA
Input Type
DC
Isolation Voltage
2.5kV
Length
44.5mm
Load Current
45A
Max Input Voltage
24V
Min Input Voltage
12V
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Voltage
264V
Max Supply Voltage
30V
Min Supply Voltage
9.6V
Mount
DIN Rail, Screw
Operating Supply Voltage
30V
Output Current
45A
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
G3PE
Termination
Screw
Throw Configuration
SPST
Turn-Off Delay Time
1ms
Turn-On Delay Time
1ms
Voltage Rating (AC)
240V
Compliance
RoHS
Compliant
