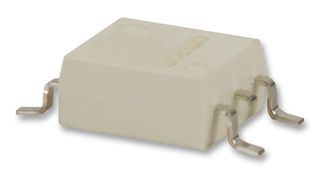

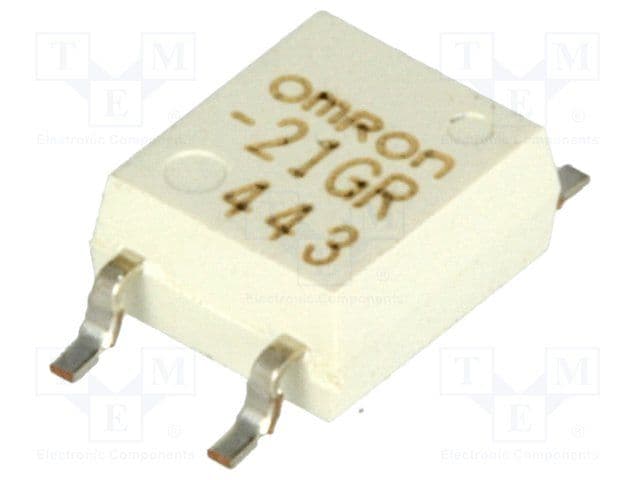

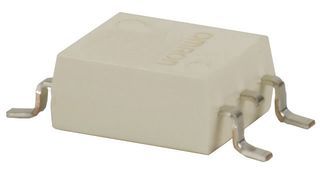

SPST-NO MOSFET Relay, 20V DC rated voltage, 160mA load current. Features 8 ohm on-state resistance, 2.5pF capacitance, and 1.5kV isolation voltage. Surface mountable in an SOP package with gull wing termination. Operates from -20°C to 85°C, with a 30mA forward current and 50mA input current. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-21GR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-21GR technical specifications.
| Approvals | UL |
| Capacitance | 2.5pF |
| Package/Case | SOP |
| Current Rating | 160mA |
| Depth | 4.4mm |
| Forward Current | 30mA |
| Height | 1.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 3.9mm |
| Load Current | 160mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 160mA |
| Max Output Voltage | 20V |
| Mount | Surface Mount |
| On-State Resistance | 8R |
| Output Current | 160mA |
| Output Voltage | 20V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 20V |
| Width | 3.9mm |
| RoHS | Compliant |
