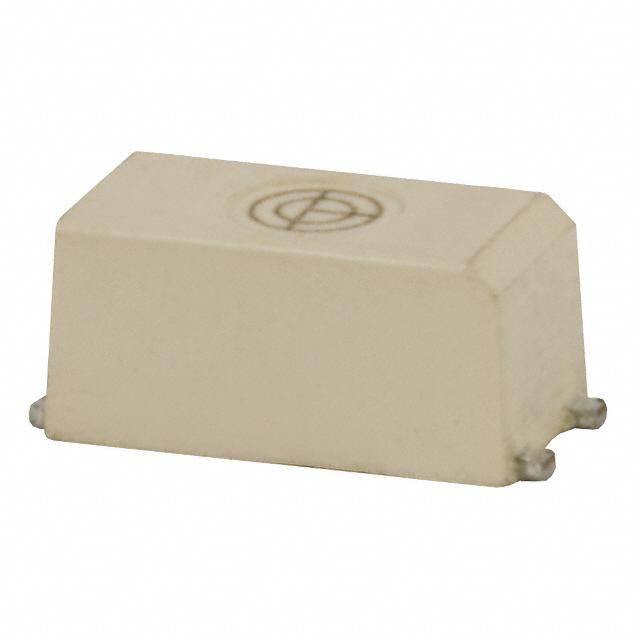

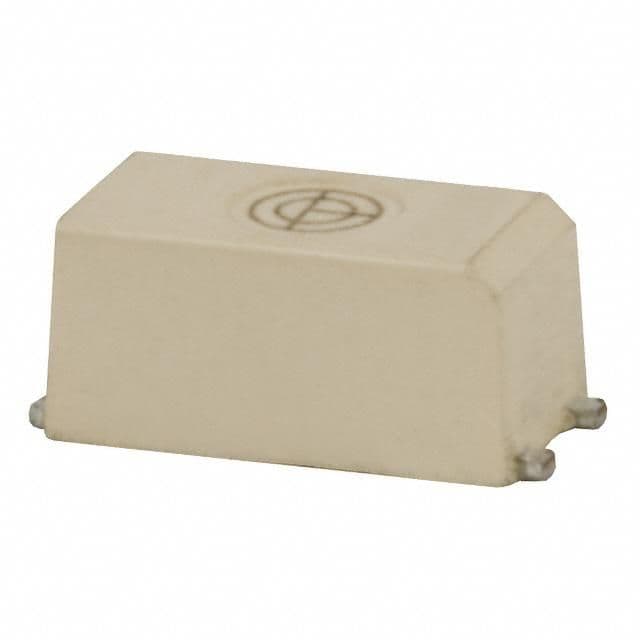

AC & DC Output Solid State Relay (SSR) with SPST-NO configuration. Features a 160mA load current rating and a 20VDC/20VAC maximum output voltage. Operates with a 4mA input current and 1.3V maximum input voltage. Surface mountable in an SSOP package, offering 1.5kV isolation voltage and 2.5pF capacitance. RoHS compliant with UL approval.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-21LR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-21LR technical specifications.
| Approvals | UL |
| Capacitance | 2.5pF |
| Package/Case | SSOP |
| Current Rating | 160mA |
| Depth | 3.5mm |
| Forward Current | 30mA |
| Height | 1.8mm |
| Input Current | 4mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Length | 2.04mm |
| Load Current | 160mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 160mA |
| Max Output Voltage | 20V |
| Mount | Surface Mount |
| Output Current | 160mA |
| Output Voltage | 20V |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 20V |
| Width | 2mm |
| RoHS | Compliant |
Download the complete datasheet for Omron G3VM-21LR to view detailed technical specifications.
