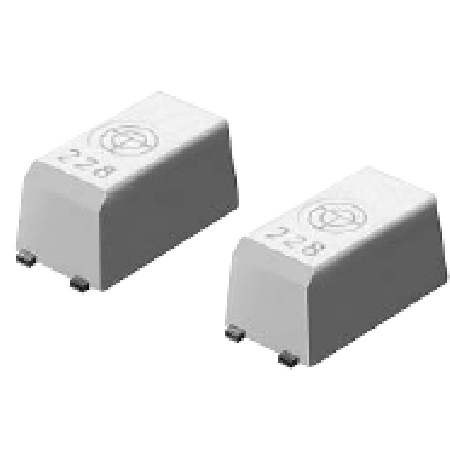

The Omron G3VM-21LR11 is a solid state relay with a maximum output voltage of 20V and a maximum output current of 900mA. It features a SPST throw configuration and is packaged in an SSOP package for surface mount applications. The relay operates over a temperature range of -20°C to 65°C and is RoHS compliant. It has an isolation voltage of 1.5kV and an input current of up to 20mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-21LR11 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-21LR11 technical specifications.
| Package/Case | SSOP |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Load Current | 900mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 900mA |
| Max Output Voltage | 20V |
| Mount | Surface Mount |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| RoHS | Compliant |
