AC/DC output solid-state relay featuring DC input and surface mount termination. This SPST relay offers a 1.3V DC input voltage with a 50mA input current, and a 350V AC/DC output voltage with a 120mA load current. Key specifications include 2.5kV isolation voltage, 0.8pF capacitance, and a compact 4.58mm x 6.4mm x 3.65mm SMD package. Operating temperature range is -20°C to 85°C, with UL approval and RoHS compliance.
PackageSMD/SMT
Capacitance0.8pF
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-351D technical specifications.
General
Approvals
UL
Capacitance
0.8pF
Package/Case
SMD/SMT
Current Rating
120mA
Depth
6.4mm
Forward Current
7.5mA
Height
3.65mm
Input Current
50mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
4.58mm
Load Current
100mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
120mA
Max Output Voltage
350V
Mount
Surface Mount
Output Current
120mA
Output Voltage
350V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
G3VM
Termination
Gull Wing
Throw Configuration
SPST
Voltage Rating (AC)
350V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-351D Datasheet
Download the complete datasheet for Omron G3VM-351D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

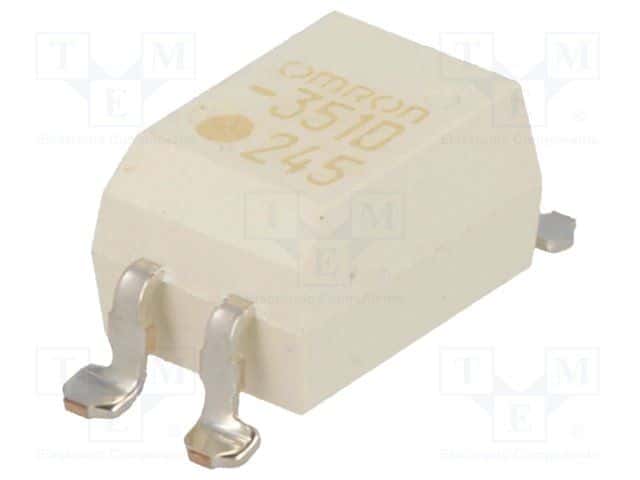

Product Images
