Surface mount solid-state relay featuring AC/DC output and DC input. This SPST relay offers a 350V AC/DC output voltage rating and a 120mA load current capacity. It operates with a 1.3V DC input voltage and a 50mA maximum input current. Key specifications include 2.5kV isolation voltage, 0.8pF capacitance, and a temperature range of -20°C to 85°C. The component is RoHS compliant and UL approved, packaged in an SMD/SMT case with gull wing termination.
PackageSMD/SMT
Capacitance0.8pF
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-351E technical specifications.
General
Approvals
UL
Capacitance
0.8pF
Package/Case
SMD/SMT
Current Rating
120mA
Depth
6.4mm
Forward Current
10mA
Height
3.65mm
Input Current
50mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
7.12mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
120mA
Max Output Voltage
350V
Mount
Surface Mount
Output Current
120mA
Output Voltage
350V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
G3VM
Termination
Gull Wing
Throw Configuration
SPST
Voltage Rating (AC)
350V
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-351E Datasheet
Download the complete datasheet for Omron G3VM-351E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

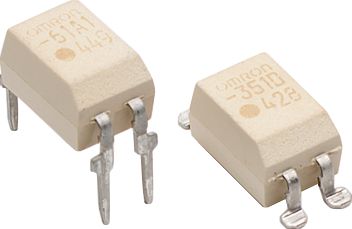

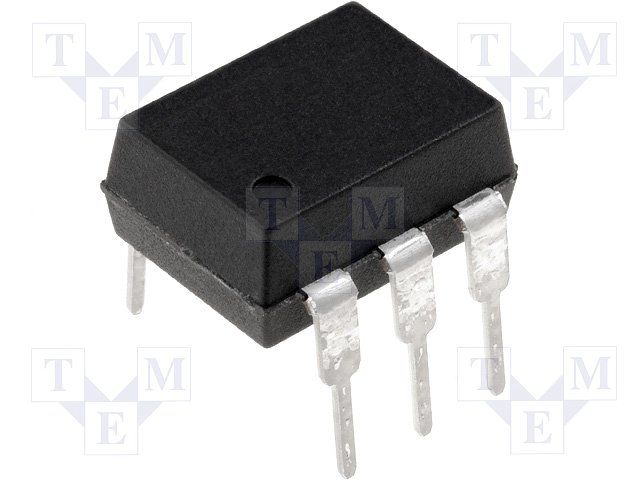

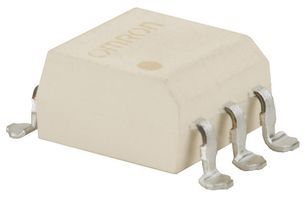

Product Images
