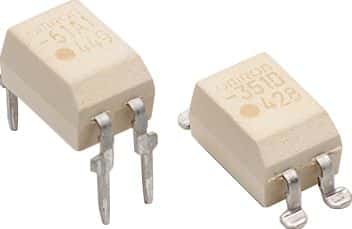

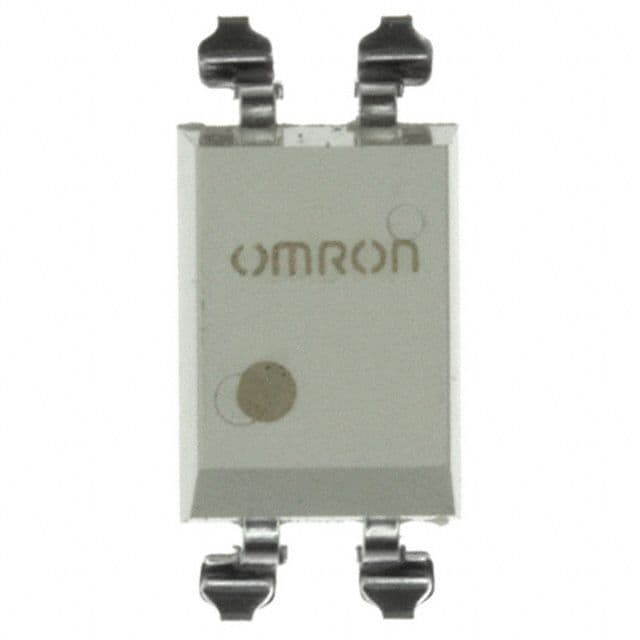

AC & DC Output Solid State Relay (SSR) with SPST-NC throw configuration. Features a 150mA load current rating and a 350V maximum output voltage. DC input type with 50mA forward current and 1.3V maximum input voltage. Surface mountable with Gull Wing termination, measuring 4.58mm L x 4.6mm W x 3.65mm H. Offers 2.5kV isolation voltage and 0.8pF capacitance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-353D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-353D technical specifications.
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SMD/SMT |
| Current Rating | 150mA |
| Depth | 6.4mm |
| Forward Current | 25mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 4.58mm |
| Load Current | 150mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| On-State Resistance | 25R |
| Output Current | 150mA |
| Output Voltage | 280V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 350V |
| Width | 4.6mm |
| RoHS | Compliant |
