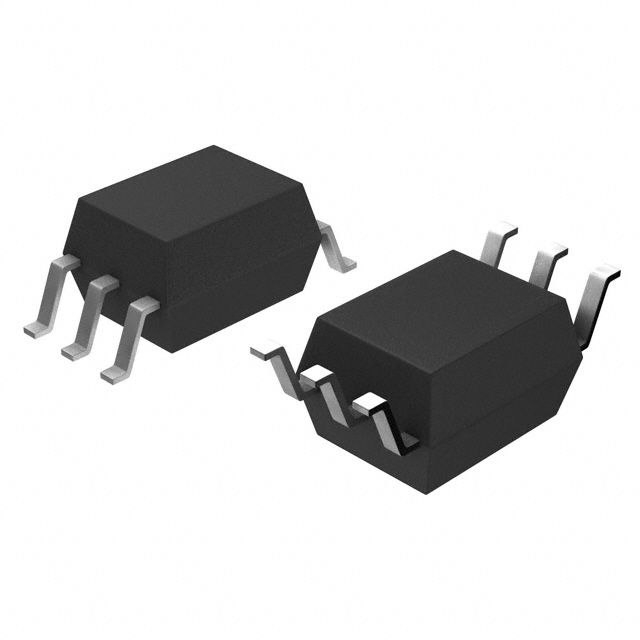

The Omron G3VM-353H1 is a solid state relay with a SPST throw configuration, rated for 350V maximum output voltage and 90mA maximum output current. It has a lead-free package and is suitable for surface mount applications. The relay is available in a SOP package, measuring 6.3mm in length, 4.4mm in width, and 2.1mm in height. It operates within a typical temperature range and is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-353H1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-353H1 technical specifications.
| Package/Case | SOP |
| Height | 2.1mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Load Current | 90mA |
| Max Input Current | 50mA |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| Output Current | 90mA |
| Output Voltage | 350V |
| Package Quantity | 75 |
| RoHS Compliant | No |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.4mm |
| RoHS | Not Compliant |
