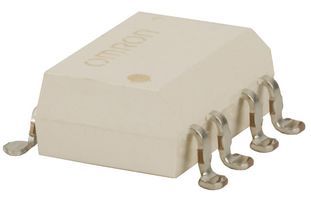

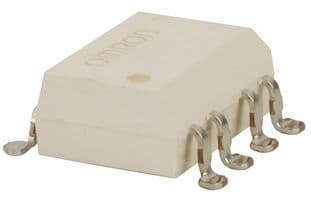

Surface mount solid-state relay with SPST-NO/NC configuration, capable of switching 120mA at up to 350V AC/DC. Features DC input with a maximum of 1.3V and 50mA input current, offering 2.5kV isolation. Operates within a temperature range of -40°C to 85°C, with an on-state resistance of 25 Ohms. Packaged in SMD/SMT with gull wing termination for PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-355FR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-355FR technical specifications.
| Package/Case | SMD/SMT |
| Depth | 6.4mm |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 9.66mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount, PCB |
| On-State Resistance | 25R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST, DPST |
| Width | 6.4mm |
| RoHS | Compliant |
