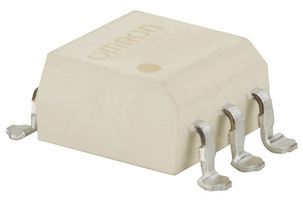

AC & DC Output Solid State Relay (SSR) featuring a MOSFET output for 350V, 120mA AC/DC load switching. This surface mount component offers a 2.5kV isolation voltage and a 1ms turn-on delay. Designed with a DC input and gull wing termination, it operates within a -20°C to 85°C temperature range and is UL approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-3F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-3F technical specifications.
| Approvals | UL |
| Capacitance | 75pF |
| Package/Case | SMD/SMT |
| Current Rating | 120mA |
| Depth | 6.4mm |
| Forward Current | 25mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 7.12mm |
| Load Current | 120mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RMS Current (Irms) | 120mA |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Turn-On Delay Time | 1ms |
| Width | 6.4mm |
| RoHS | Compliant |
