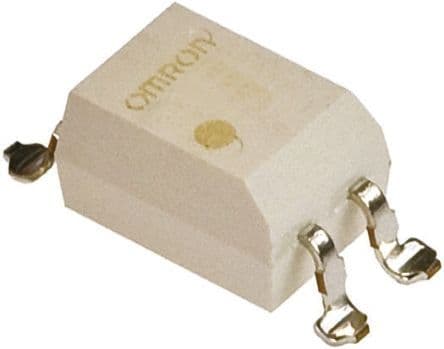

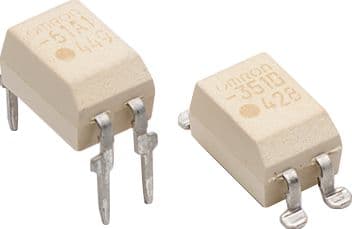

AC & DC Output Solid State Relay (SSR) with MOSFET output, featuring a 400V maximum output voltage and 120mA load current rating. This surface mount device offers DC input with a 1.3V maximum input voltage and 50mA input current. Key specifications include 2.5kV isolation voltage, 0.8pF capacitance, and a 1ms turn-on/turn-off delay. The component is RoHS compliant and available in an SMD/SMT package with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-401D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-401D technical specifications.
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SMD/SMT |
| Current Rating | 120mA |
| Depth | 6.4mm |
| Forward Current | 7.5mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 4.58mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Output Current | 120mA |
| Output Voltage | 320V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 120mA |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 1ms |
| Turn-On Delay Time | 1ms |
| Voltage Rating (AC) | 400V |
| Width | 4.58mm |
| RoHS | Compliant |
