SPST-NO MOSFET Relay, 400 VAC max output voltage, 120 mA max output current. Features DC input type with 50mA max input current and 1.3V max input voltage. Offers 5kV isolation voltage and 0.8pF capacitance. Surface mountable SMD/SMT package with gull wing termination, operating temperature range of -40°C to 85°C. RoHS compliant.
PackageSMD/SMT
Capacitance0.8pF
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-401EY technical specifications.
General
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SMD/SMT |
| Current Rating | 120mA |
| Depth | 6.4mm |
| Forward Current | 7.5mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Length | 7.12mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Mount | Surface Mount |
| Output Current | 120mA |
| Output Voltage | 400V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 400V |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3VM-401EY Datasheet
Download the complete datasheet for Omron G3VM-401EY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

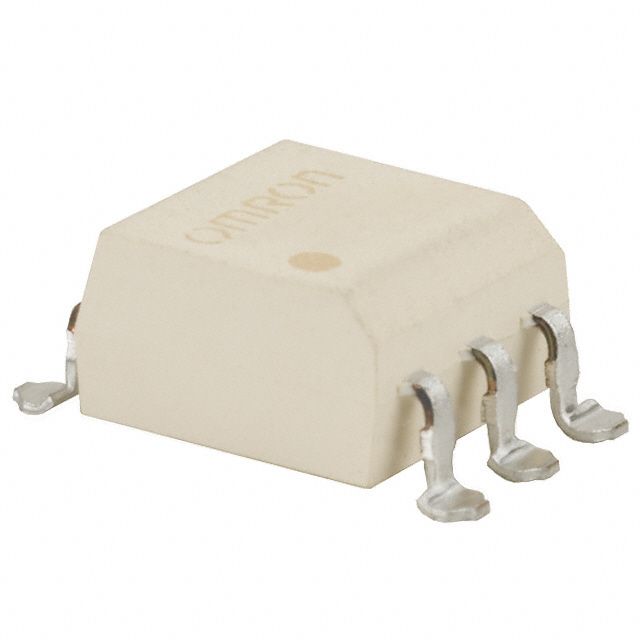

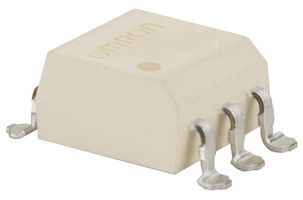

Product Images
