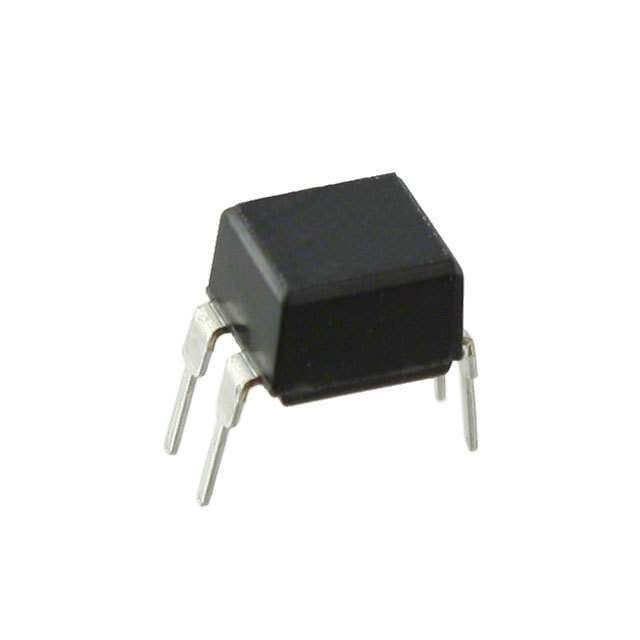

The Omron G3VM-41AY is a solid state relay with a maximum input voltage of 1.75V and a maximum output current of 2A. It operates within a temperature range of -40°C to 85°C and is available in a DIP package with a through hole mount. The relay is RoHS compliant and has a package quantity of 400 units per rail or tube packaging. It is not radiation hardened and has a throw configuration of SPST.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-41AY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-41AY technical specifications.
| Package/Case | DIP |
| Input Type | DC |
| Load Current | 2A |
| Max Input Current | 15mA |
| Max Input Voltage | 1.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 32V |
| Mount | Through Hole |
| Package Quantity | 400 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
Download the complete datasheet for Omron G3VM-41AY to view detailed technical specifications.
