The Omron G3VM-41PR10 is a solid state relay with a maximum output voltage of 32V and a maximum output current of 120mA. It has a maximum operating temperature of 65°C and a minimum operating temperature of -20°C. The relay is packaged in a SOP package and is RoHS compliant. It is designed for surface mount applications and has a height of 1.65mm, length of 2.85mm, and width of 2.2mm.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-41PR10 technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 1.65mm |
| Input Type | DC |
| Isolation Voltage | 500V |
| Length | 2.85mm |
| Load Current | 120mA |
| Max Input Current | 20mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 120mA |
| Max Output Voltage | 32V |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Solder |
| Throw Configuration | SPST |
| Weight | 0.008818oz |
| Width | 2.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3VM-41PR10 Datasheet
Download the complete datasheet for Omron G3VM-41PR10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

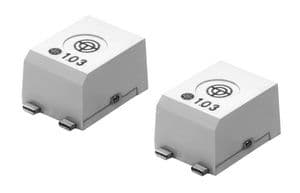

Product Images
