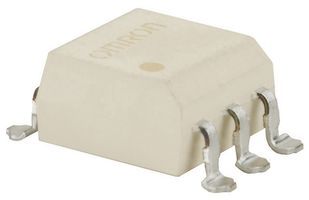

AC & DC Output Solid State Relay (SSR) with SPST-NO configuration. Features a 600 VAC maximum output voltage and 100 mA load current. Operates with DC input, requiring 15 mA forward current and a maximum input voltage of 1.3V. Offers 5kV isolation voltage and a low 45 ohm on-state resistance. Packaged in an SMD/SMT case with gull wing termination for surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-601EY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-601EY technical specifications.
| Capacitance | 0.8pF |
| Package/Case | SMD/SMT |
| Current Rating | 100mA |
| Depth | 6.4mm |
| Forward Current | 15mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Length | 7.12mm |
| Load Current | 100mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 100mA |
| Max Output Voltage | 600V |
| Mount | Surface Mount |
| Output Voltage | 600V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 6.4mm |
| RoHS | Compliant |
