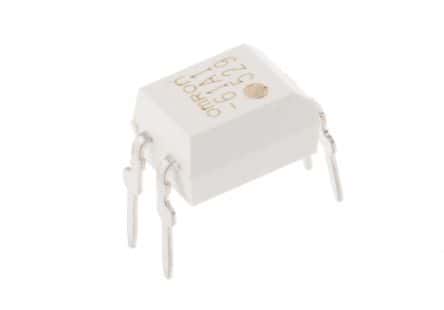

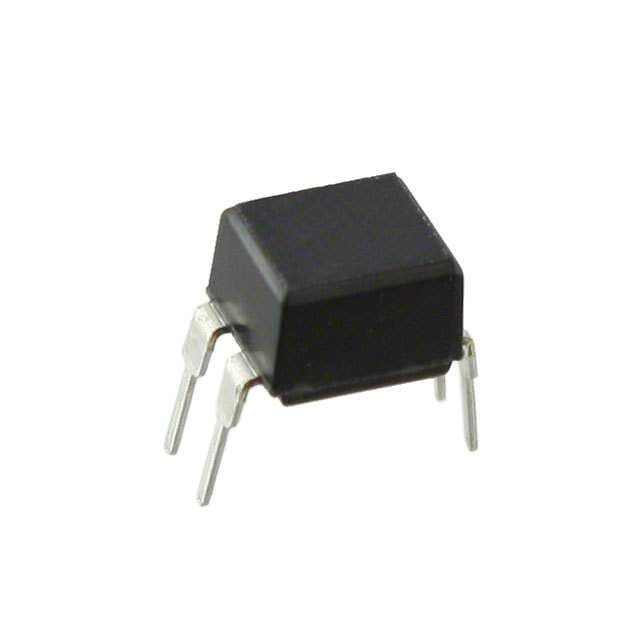

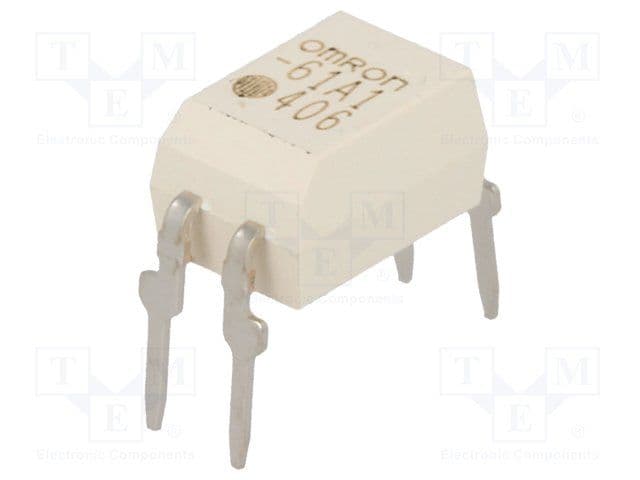

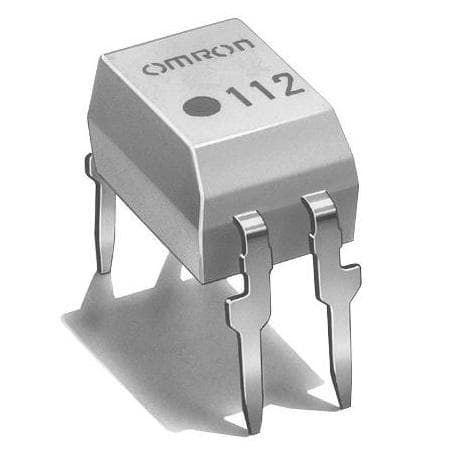

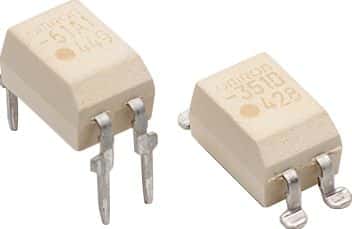

AC/DC output solid state relay featuring a 500mA load current capacity and a 60V maximum output voltage. This SPST relay operates with a DC input voltage up to 1.3V and requires 50mA input current. It offers 2.5kV isolation voltage and a low 0.8pF capacitance. The component is RoHS compliant, lead-free, and packaged in a 4-pin PDIP for through-hole PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-61A1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | PDIP |
| Current Rating | 500mA |
| Depth | 6.4mm |
| Forward Current | 7.5mA |
| Height | 3.65mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 4.58mm |
| Load Current | 500mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 500mA |
| Max Output Voltage | 60V |
| Mount | Through Hole, PCB |
| Output Current | 500mA |
| Output Voltage | 60V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 60V |
| Width | 4.6mm |
| RoHS | Compliant |
