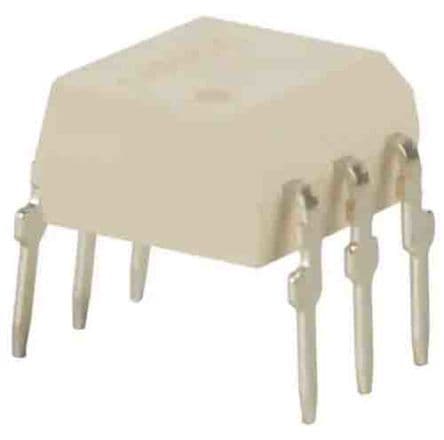

Omron's G3VM-61BR1 is a solid state relay with a SPST throw configuration, operating at 48V with a maximum output current of 3A. It features 2.5kV isolation voltage and is mounted through a hole. The relay is packaged in a DIP case with a height of 4.85mm, and is available in quantities of 100. It is compliant with RoHS regulations and has an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-61BR1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-61BR1 technical specifications.
| Package/Case | DIP |
| Height | 4.85mm |
| Input Current | 10mA |
| Isolation Voltage | 2.5kV |
| Load Current | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| On-State Resistance | 70mR |
| Output Current | 3A |
| Output Voltage | 48V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
