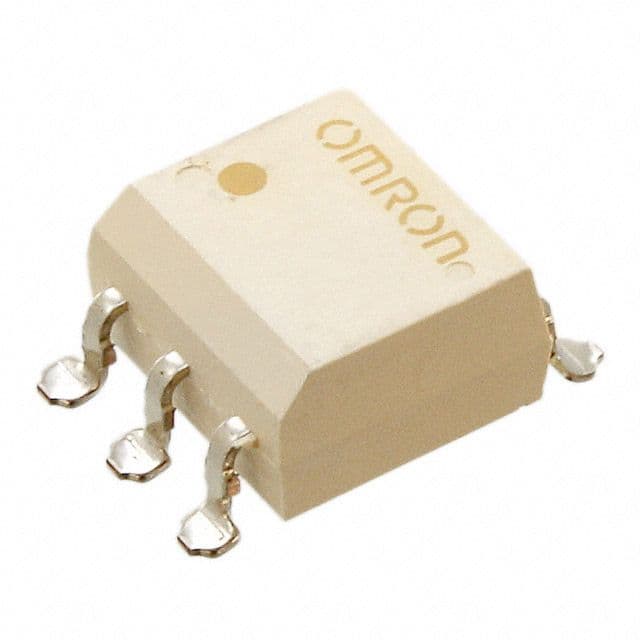

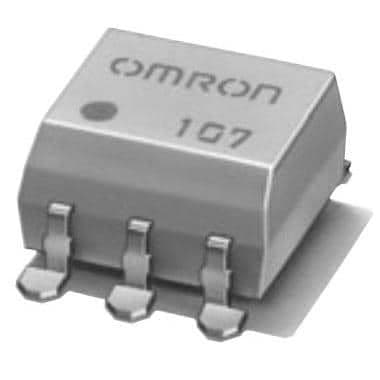

Surface mount solid-state relay with DC input and AC/DC output. Features a 3A maximum load current and 48V maximum output voltage. Offers 25mA maximum input current and 1.48V DC input voltage. Includes 70mR on-state resistance and 2.5kV isolation voltage. SPST throw configuration with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-61ER1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Forward Current | 30mA |
| Height | 3.65mm |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Length | 7.12mm |
| Load Current | 3A |
| Max Input Current | 25mA |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 3A |
| Max Output Voltage | 48V |
| Mount | Surface Mount |
| On-State Resistance | 70mR |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Weight | 0.008818oz |
| Width | 6.4mm |
| RoHS | Compliant |
