SPST-NO MOSFET relay featuring a 60 VAC/VDC maximum output voltage and 400 mA maximum output current. This surface-mount component offers a low 2 ohm on-resistance and 0.8 pF capacitance. It operates with a DC input type, requiring 7.5 mA forward current and a maximum input voltage of 1.3V. The relay provides 1.5 kV isolation voltage and is RoHS compliant, packaged in an SOP with gull wing termination.
PackageSOP
Capacitance0.8pF
Current Rating400mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-61G1 technical specifications.
General
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SOP |
| Current Rating | 400mA |
| Depth | 4.4mm |
| Forward Current | 7.5mA |
| Height | 1.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 3.9mm |
| Load Current | 400mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 400mA |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 400mA |
| Output Voltage | 60V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 60V |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3VM-61G1 Datasheet
Download the complete datasheet for Omron G3VM-61G1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

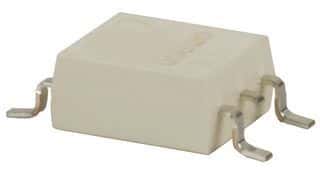

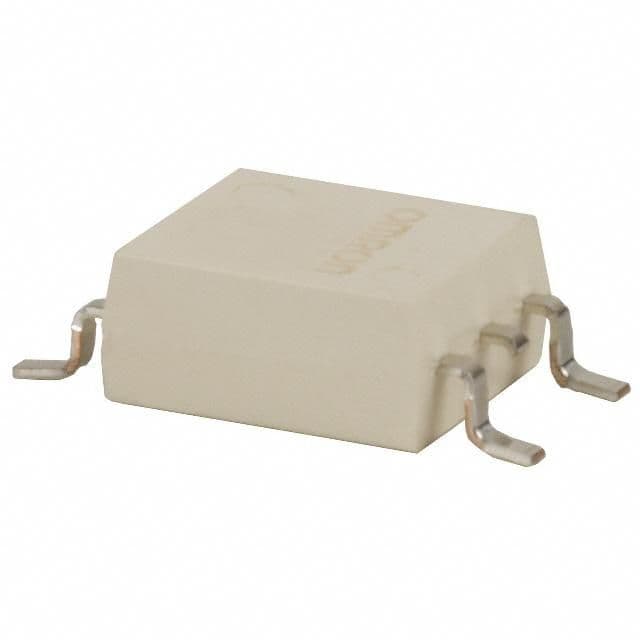

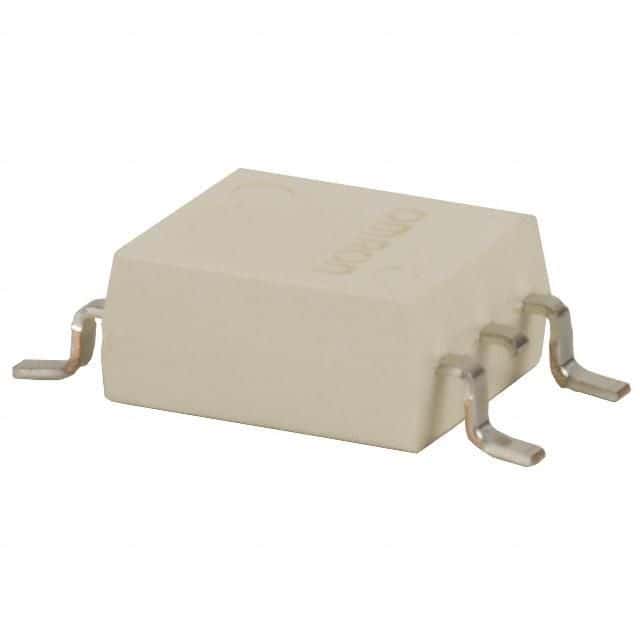

Product Images
