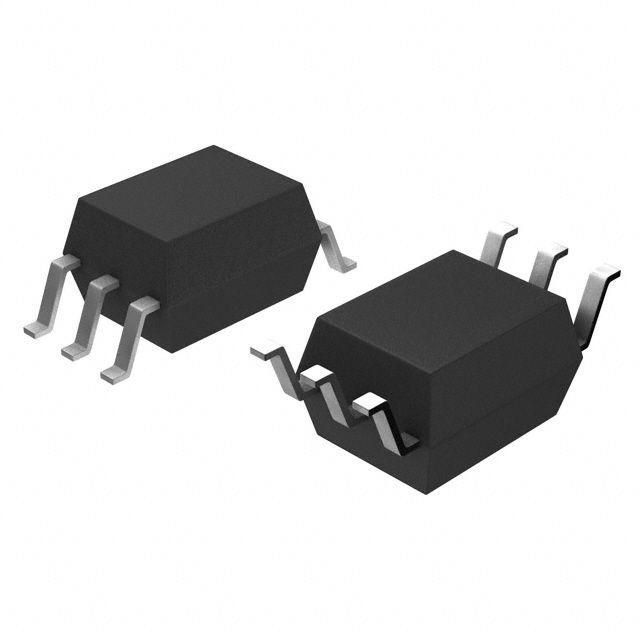

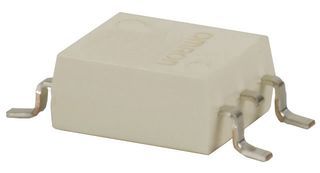

SPST-NO MOSFET Relay, 60 VAC, 400 mA, 2 ohm, featuring DC input and AC/DC output. This surface mount relay offers a 1.5kV isolation voltage and a 400mA load current rating. Operating within a -40°C to 85°C temperature range, it is RoHS compliant and UL approved. The component is housed in an SOP package with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-61H1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-61H1 technical specifications.
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SOP |
| Current Rating | 400mA |
| Depth | 4.4mm |
| Forward Current | 7.5mA |
| Height | 1.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Load Current | 400mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Output Current | 400mA |
| Output Voltage | 48V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 60V |
| Width | 6.3mm |
| RoHS | Compliant |
