AC/DC output solid-state relay featuring DC input and SPST configuration. This surface-mount device offers a 20mA forward current and 50mA max input current, with a 1.5kV isolation voltage. It handles up to 400mA load current and 60V maximum output voltage, boasting a 1.5 Ohm on-state resistance. Operating within a -20°C to 70°C temperature range, the relay is RoHS compliant and packaged in SSOP.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-61LR technical specifications.
General
Package/Case
SSOP
Depth
3.65mm
Forward Current
20mA
Height
1.8mm
Input Type
DC
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
1.9mm
Load Current
400mA
Max Input Current
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Current
400mA
Max Output Voltage
60V
Mount
Surface Mount
On-State Resistance
1.5R
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
Relay Type
Relay
RoHS Compliant
Yes
Series
G3VM
Termination
SMD/SMT
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-61LR Datasheet
Download the complete datasheet for Omron G3VM-61LR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

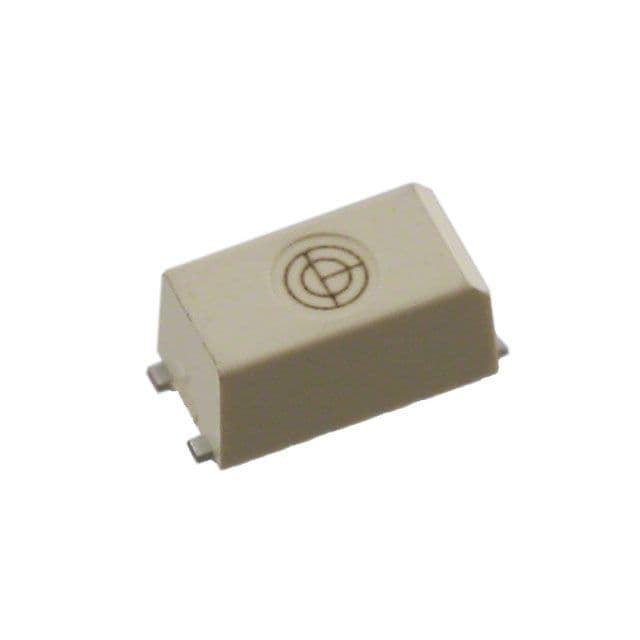

Product Images
