AC & DC Output Solid State Relay featuring a 500mA maximum output current and 60V maximum output voltage. This DIP-packaged relay offers DC input with a 1.3V maximum input voltage and 50mA maximum input current. It provides 2.5kV isolation voltage and operates within a -40°C to 85°C temperature range. Designed for PCB mounting with PC pin termination, this RoHS compliant component is supplied in a tube.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron G3VM-62C1 technical specifications.
General
Package/Case
DIP
Depth
6.4mm
Forward Current
7.5mA
Height
3.65mm
Input Current
50mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
9.66mm
Load Current
500mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
60V
Mount
Through Hole, PCB
On-State Resistance
2R
Output Current
500mA
Output Voltage
60V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
Relay
RoHS Compliant
Yes
Series
G3VM
Termination
PC Pin
Test Voltage
2.5kV
Throw Configuration
DPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-62C1 Datasheet
Download the complete datasheet for Omron G3VM-62C1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

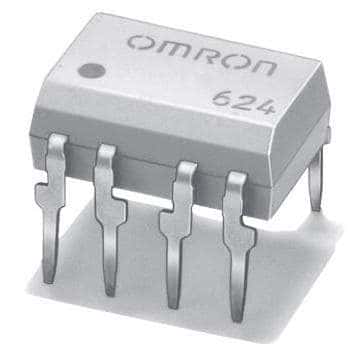

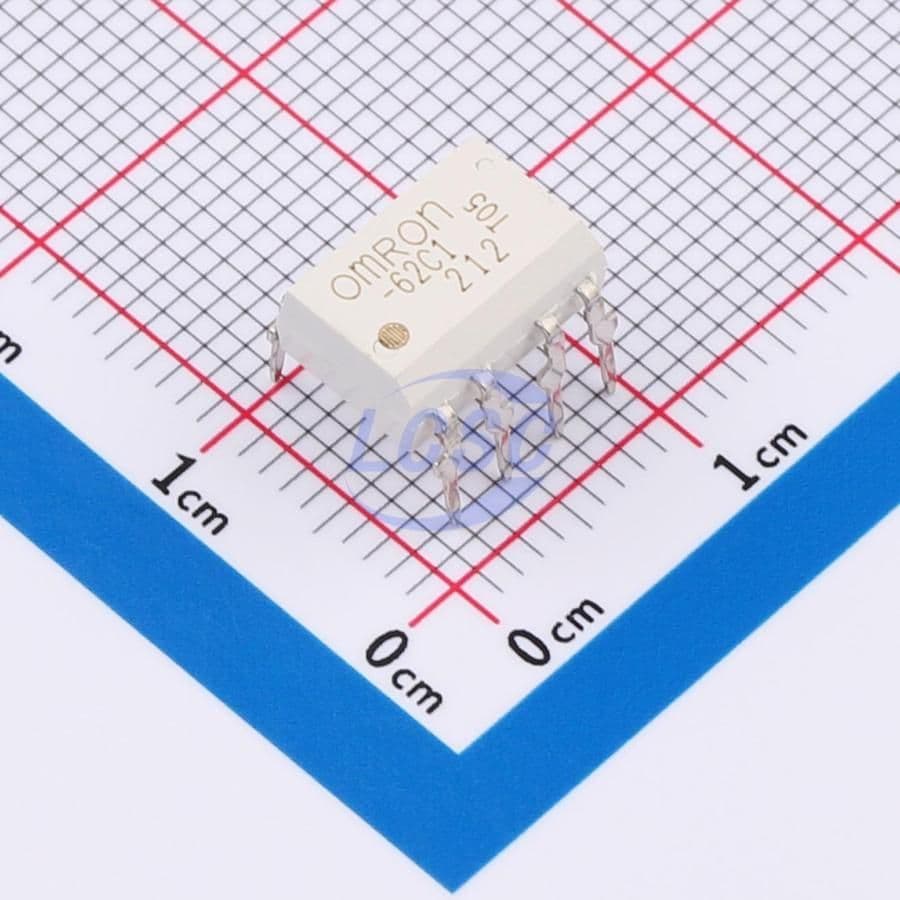

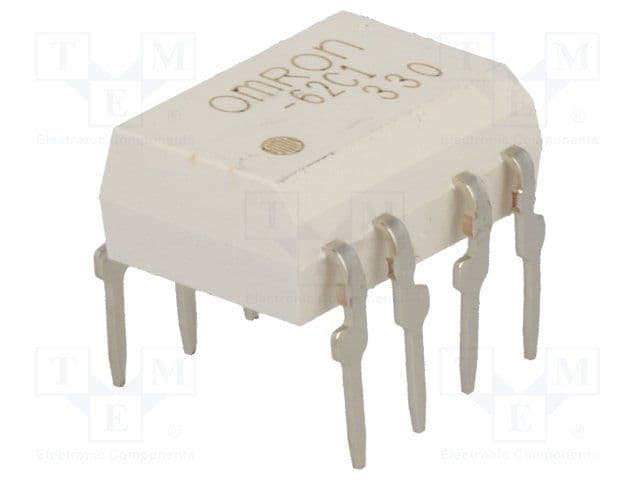

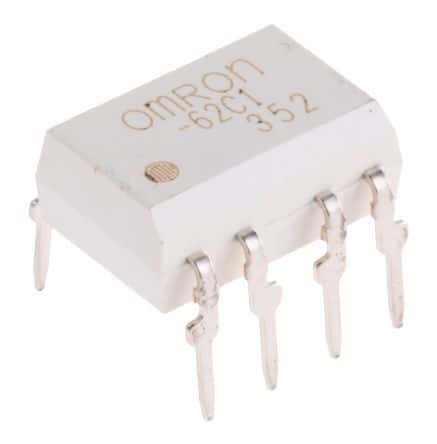

Product Images
