SPST Solid State Relay (SSR) for AC & DC output, featuring a 350mA load current capacity and 80V maximum output voltage. This surface mount device utilizes DC input with a maximum input voltage of 1.3V and a 50mA forward current. Offering 1.5kV isolation voltage, it is supplied in a tape and reel package with gull wing termination.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-81G1(TR) technical specifications.
General
| Package/Case | SOP |
| Forward Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Load Current | 350mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Output Current | 350mA |
| Max Output Voltage | 80V |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Omron G3VM-81G1(TR) Datasheet
Download the complete datasheet for Omron G3VM-81G1(TR) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

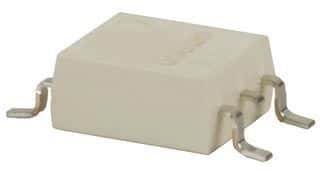

Product Images
