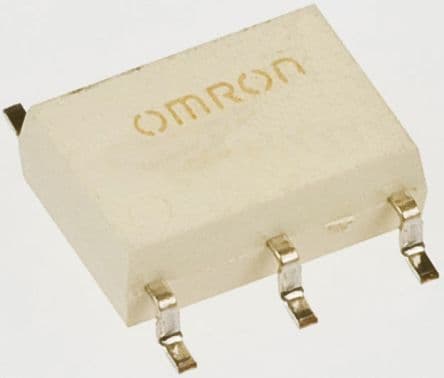

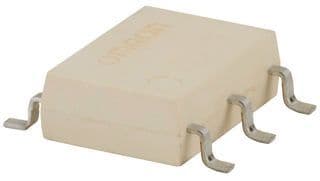

SPST-NO MOSFET relay featuring an 80 VAC, 1.25 A AC output capability. This surface-mount device offers a 1.5kV isolation voltage and a low 0.15 ohm on-state resistance. Designed for DC input with a 50mA forward current, it operates within a -20°C to 85°C temperature range and is RoHS compliant. The relay is packaged in an SOP case with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-81HR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-81HR technical specifications.
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SOP |
| Current Rating | 1.25A |
| Depth | 6.3mm |
| Forward Current | 30mA |
| Height | 1.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Load Current | 1.25A |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1.25mA |
| Max Output Voltage | 80V |
| Mount | Surface Mount |
| On-State Resistance | 150mR |
| Output Current | 1.25mA |
| Output Voltage | 80V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 80V |
| Width | 4.4mm |
| RoHS | Compliant |
