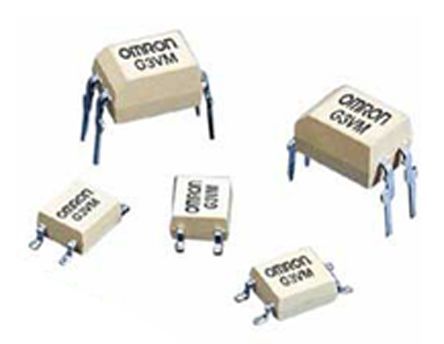

AC & DC Output Solid State Relay (SSR) featuring SPST-NO configuration. Rated for 200V output voltage and 150mA load current. DC input type with a 50mA input current requirement. Surface mount package with SMT termination and gull wing leads. Offers 1.5kV isolation voltage and 8 Ohms on-state resistance. Operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G3VM-S5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G3VM-S5 technical specifications.
| Approvals | UL |
| Capacitance | 0.8pF |
| Package/Case | SOP |
| Current Rating | 150mA |
| Depth | 3.9mm |
| Height | 2mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 150mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 200V |
| Mount | Surface Mount |
| On-State Resistance | 8R |
| Output Current | 150mA |
| Output Voltage | 200V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | G3VM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Turn-On Delay Time | 1.5ms |
| Voltage Rating (AC) | 200V |
| Width | 3.9mm |
| RoHS | Compliant |
