Technical Specifications
Omron G3VM-WL technical specifications.
General
Package/Case
DIP
Height
3.65mm
Input Type
DC
Lead Free
Lead Free
Length
9.66mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Output Current
120mA
Max Output Voltage
350V
Mount
Through Hole
On-State Resistance
35R
Package Quantity
50
Packaging
Rail/Tube
Relay Type
Relay
RoHS Compliant
Yes
Series
G3VM
Termination
PC Pin
Throw Configuration
DPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-WL Datasheet
Download the complete datasheet for Omron G3VM-WL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

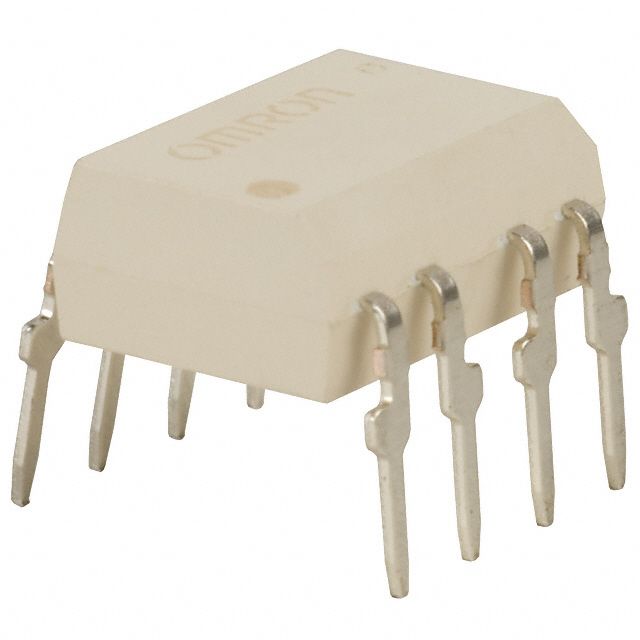

Product Images
