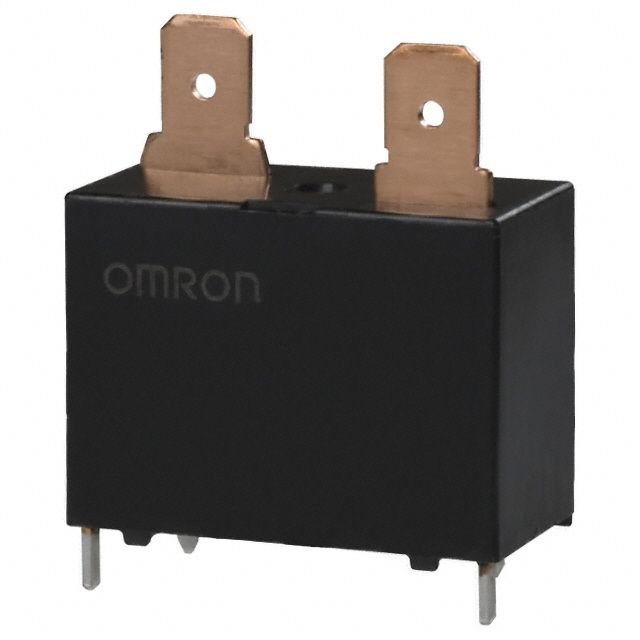

General purpose power relay featuring a SPST-NO contact configuration with a 20A contact current rating. Operates on a 12VDC coil voltage with 75mA coil current and 900mW coil power. Contact material is Tin, Silver, and it offers 250VAC voltage rating. Mounting options include through-hole and PCB with PC pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G4A-1A-E-DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G4A-1A-E-DC12 technical specifications.
| Application(s) | POWER |
| Coil Current | 75mA |
| Coil Power | 900mW |
| Coil Resistance | 160R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 20A |
| Contact Material | Tin, Silver |
| Depth | 16mm |
| Length | 30.5mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Operate Time | 20ms |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP67 |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G4A |
| Switching Current | 20A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 23g |
| Width | 16mm |
| RoHS | Compliant |
