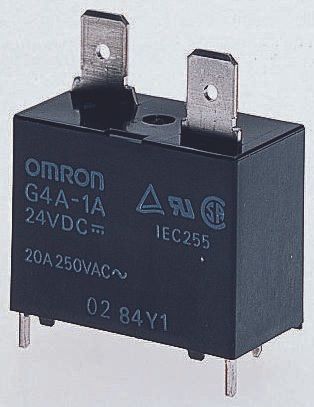

The G4A-1A-E-DC5 is a general purpose relay with a non-latching coil and a contact current rating of 20A. It has a maximum operating temperature of 60°C and a minimum operating temperature of -20°C. The relay is rated for 250V AC and has a switching current of 20A. It is available in a through hole mount package and is rated for IP67. The relay operates in 20ms and releases in 10ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G4A-1A-E-DC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 180mA |
| Coil Power | 900mW |
| Coil Resistance | 27.8R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 20A |
| Contact Material | Tin, Silver |
| Max Current Rating | 20A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Operate Time | 20ms |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP67 |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G4A |
| Switching Current | 20A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
