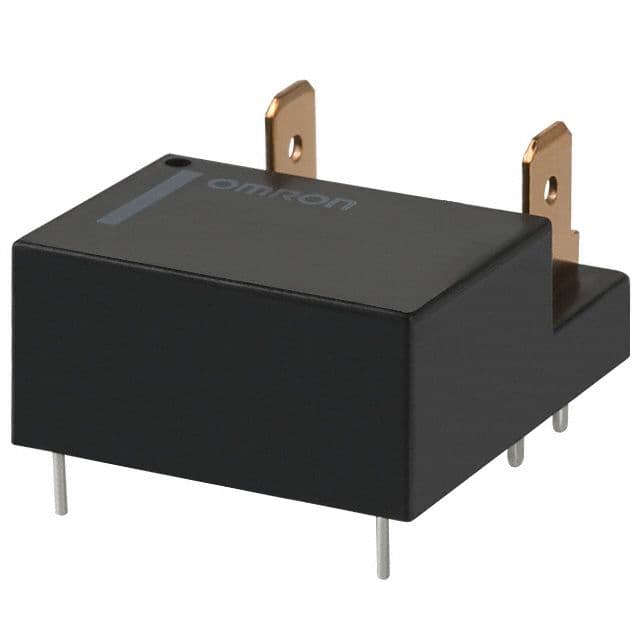

High-capacity SPST-NO power relay featuring a 12VDC coil with 16.7mA coil current and 200mW coil power. This electromechanical relay offers a 15A max current rating and 250VAC/125VDC max voltage ratings, with silver contact material. Designed for PCB through-hole mounting with PC pin termination, it operates within a -25°C to 70°C temperature range and boasts a 20 million hour mechanical life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G5CA-1A-E-DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | POWER |
| Coil Current | 16.7mA |
| Coil Power | 200mW |
| Coil Resistance | 720R |
| Coil Voltage (DC) | 12V |
| Contact Material | Silver |
| Depth | 16mm |
| Height | 11mm |
| Lead Free | Lead Free |
| Length | 22mm |
| Life (Hours) | 20000000Hour |
| Max Current Rating | 15A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | PCB, Through Hole |
| Operate Time | 10ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 150mW |
| Radiation Hardening | No |
| Series | G5CA |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 8g |
| Width | 16mm |
| RoHS | Compliant |
