Technical Specifications

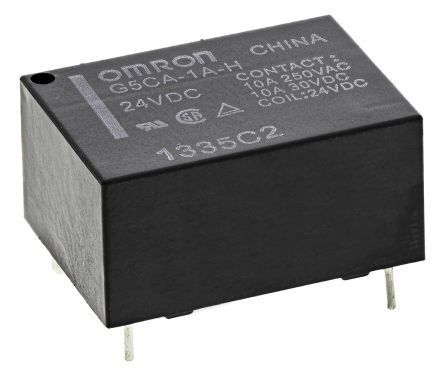

Omron G5CA-1A-HDC24 technical specifications.
General
Coil Current
6.52mA
Coil Resistance
3.84kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
G5CA
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G5CA-1A-HDC24 Datasheet
Download the complete datasheet for Omron G5CA-1A-HDC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
