Technical Specifications
Omron G5CA-1A-TP-EDC5 technical specifications.
General
Coil Current
40mA
Coil Power
200mW
Coil Resistance
125R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
15A
Contact Material
Silver
Max Current Rating
15A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
10ms
Package Quantity
20
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
G5CA
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G5CA-1A-TP-EDC5 Datasheet
Download the complete datasheet for Omron G5CA-1A-TP-EDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

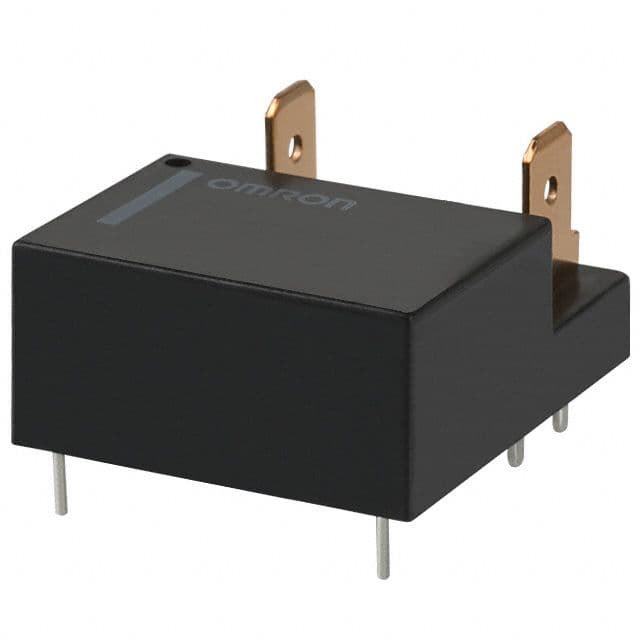

Product Images
