General purpose SPDT power relay with a 5A contact current rating and 12V DC coil voltage. Features a 360mW coil power consumption, 400 Ohm coil resistance, and non-latching coil type. Operates within a -40°C to 85°C temperature range, with 10ms operate time and 5ms release time. Through-hole mounting with PC pin termination, offering 250V AC and 24V DC maximum voltage ratings. RoHS compliant and lead-free.
MountingThrough Hole
Power360mW
Quick Jump:
Technical Specifications
Omron G5LA-14-DC12 technical specifications.
General
| Coil Current | 30mA |
| Coil Power | 360mW |
| Coil Resistance | 400R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 5A |
| Contact Material | Tin, Silver, Cadmium |
| Height | 15.6mm |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Tray |
| Power Consumption | 360mW |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G5LA |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Weight | 7.5g |
| Width | 15.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5LA-14-DC12 Datasheet
Download the complete datasheet for Omron G5LA-14-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

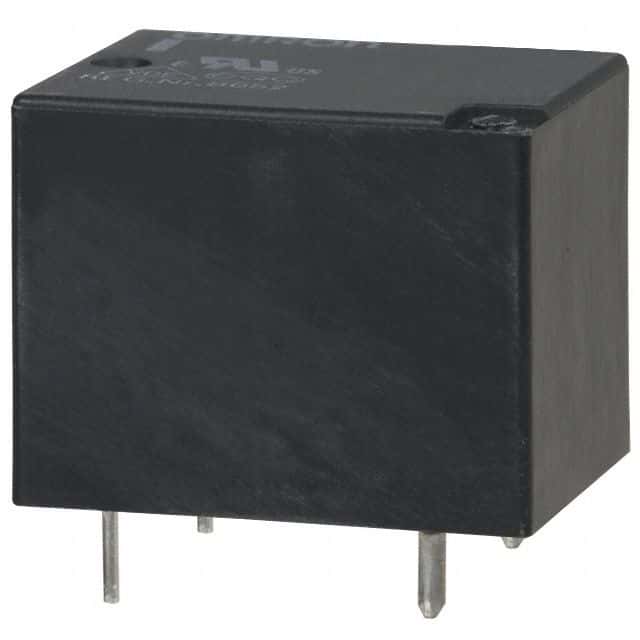

Product Images
