SPDT Electromechanical Power Relay with 10A AC and 8A DC contact rating. Features a 24VDC non-latching coil with 1.44kΩ resistance and 16.7mA current draw. Operates within a -40°C to 85°C temperature range, offering 10ms operate and 5ms release times. Through-hole mounting with solder termination, UL and CSA approvals, and a 250VAC/125VDC maximum voltage rating.
Current Rating10A
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
Omron G5LE-14-DC24 technical specifications.
General
| Approvals | UL, CSA |
| Coil Current | 16.7mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Current Rating | 10A |
| Depth | 16.5mm |
| Lead Free | Lead Free |
| Length | 22.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 500 |
| Packaging | Tray |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G5LE |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Weight | 12g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5LE-14-DC24 Datasheet
Download the complete datasheet for Omron G5LE-14-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

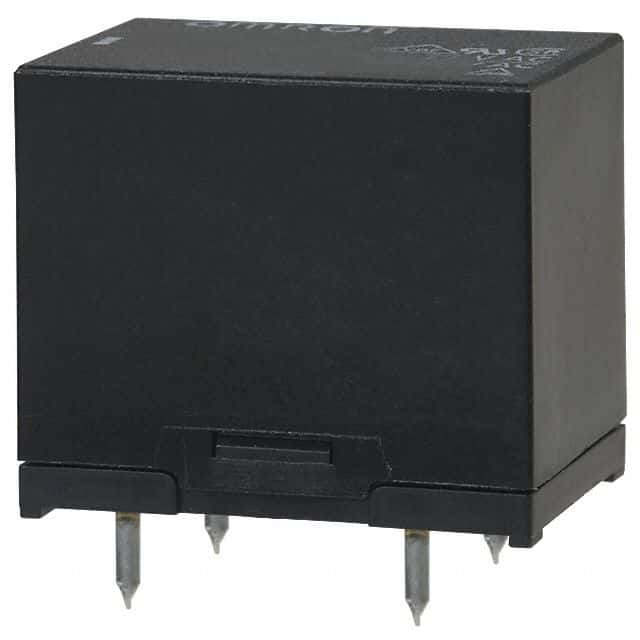

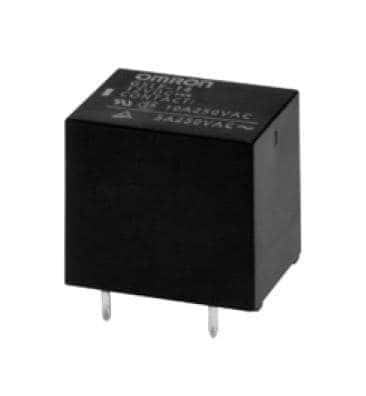

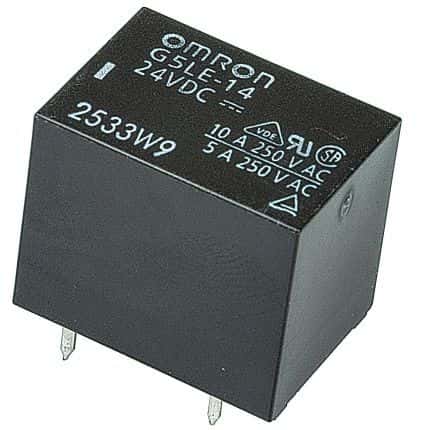

Product Images
