SPDT general purpose power relay with a 10A contact current rating and 250VAC/125VDC maximum voltage rating. Features a 48VDC non-latching coil with 8.33mA coil current and 5.76kR coil resistance, consuming 400mW. Contact material is Tin, Silver. Through-hole mount with solder termination. Operating temperature range from -25°C to 85°C.
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Omron G5LE-14DC48 technical specifications.
General
| Coil Current | 8.33mA |
| Coil Resistance | 5.76kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 48V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Depth | 16.5mm |
| Height | 19mm |
| Lead Free | Lead Free |
| Length | 22.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Tray |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G5LE |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 16.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5LE-14DC48 Datasheet
Download the complete datasheet for Omron G5LE-14DC48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

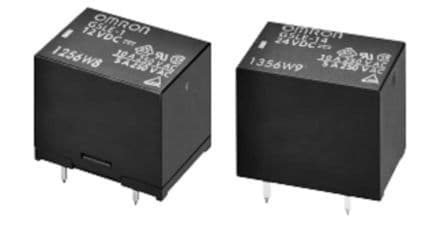

Product Images
