Technical Specifications
Omron G5LE-1A-DC24 technical specifications.
General
| Coil Current | 16.7mA |
| Coil Resistance | 1.44kR |
| Coil Voltage (DC) | 24V |
| Contact Material | Tin, Silver |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Packaging | Tray |
| Power Consumption | 400mW |
| Termination | Solder |
| Throw Configuration | SPST |
| Weight | 12g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5LE-1A-DC24 Datasheet
Download the complete datasheet for Omron G5LE-1A-DC24 to view detailed technical specifications.
No datasheet is available for this part.

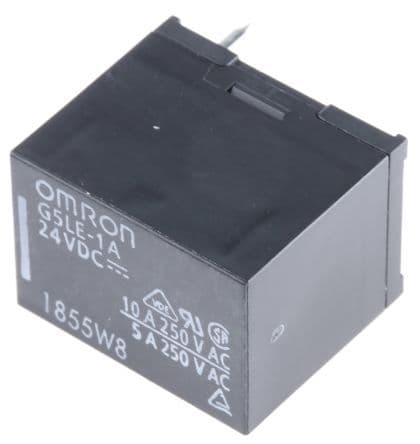

Product Images
