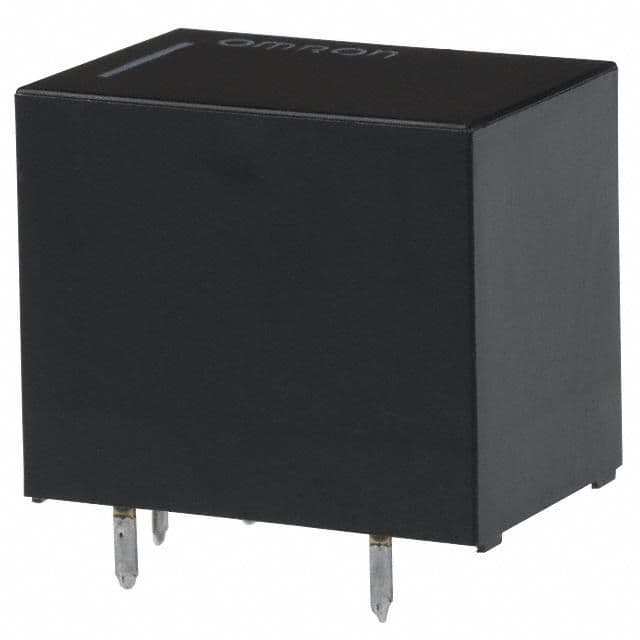

The G5LE Series General Purpose Relay from Omron is a non-latching coil type relay with a contact current rating of 10A and a maximum voltage rating of 125V DC or 250V AC. It has a coil resistance of 360 ohms and a coil voltage of 12V DC. The relay is designed for through hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. It is available in a lead free package and has a operate time of 10ms and a release time of 5ms.
Sign in to ask questions about the Omron G5LE-1A4-ASIDC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G5LE-1A4-ASIDC12 technical specifications.
| Coil Current | 33.3mA |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Height | 18.5mm |
| Lead Free | Lead Free |
| Length | 21.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Packaging | Tray |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G5LE |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 15.6mm |
| RoHS | Compliant |
