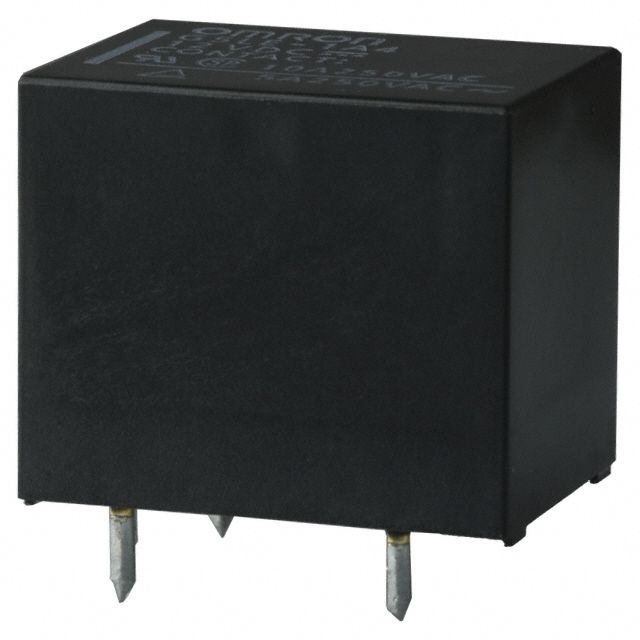

The G5LE-1A4-ASIDC3 is a general purpose SPST relay from Omron with a maximum voltage rating of 125V DC and a contact current rating of 10A. It has a non-latching coil with a resistance of 22.5 ohms and a power consumption of 400mW. The relay operates within a temperature range of -40°C to 85°C and has a switching time of 10ms on and 5ms off. It is available in a through hole mount package in bulk quantities.
Checking distributor stock and pricing after the page loads.
Omron G5LE-1A4-ASIDC3 technical specifications.
| Coil Current | 133mA |
| Coil Power | 400mW |
| Coil Resistance | 22.5R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G5LE |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
No datasheet is available for this part.
